PBCGroupOutputModule Class Reference

Specialized output module for periodic boundary condition analysis. More...

#include "PBCGroupOutputModule.h"

Inheritance diagram for PBCGroupOutputModule:

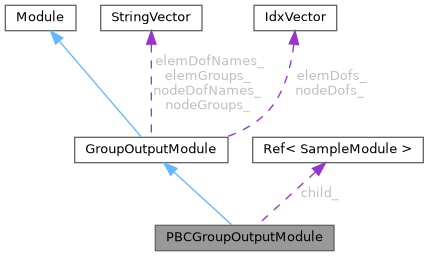

Collaboration diagram for PBCGroupOutputModule:

Public Types
Type definitions
typedef PBCGroupOutputModule	Self
	Self type alias.
typedef GroupOutputModule	Super
	Base class type alias.

Public Member Functions
	PBCGroupOutputModule (const String &name="pbcGroupOutput")
	Constructor.
virtual Status	init (const Properties &conf, const Properties &props, const Properties &globdat) override
	Initialize PBC output module.
virtual Status	run (const Properties &globdat) override
	Run PBC output extraction.
virtual void	shutdown (const Properties &globdat) override
	Shutdown and finalize output.
Public Member Functions inherited from GroupOutputModule
	GroupOutputModule (const String &name="groupOutput")
	Constructor.

Static Public Member Functions
static Ref< Module >	makeNew (const String &name, const Properties &conf, const Properties &props, const Properties &globdat)
	Factory method for creating new instances.
static void	declare ()
	Register module type with factory.
static StringVector	getDataSets (const idx_t dim, const bool strains=false, const bool stresses=false, const StringVector &dofNames={ "dx", "dy", "dz"})
	Generate strain/stress data set expressions.
Static Public Member Functions inherited from GroupOutputModule
static Ref< Module >	makeNew (const String &name, const Properties &conf, const Properties &props, const Properties &globdat)
	Factory method for creating new GroupOutputModule instances.
static void	declare ()
	Register GroupOutputModule type with ModuleFactory.

Static Public Attributes
Property identifiers
static const char *	TYPE_NAME = "PBCGroupOutput"
	Module type name.
static const char *	CHILD_NAME = "sampling"
	Child sampling module name.
Static Public Attributes inherited from GroupOutputModule
static const char *	TYPE_NAME = "GroupOutput"
	Module type name.

Protected Member Functions
String	getHeader_ (String existing) const
	Generate CSV header string.
StringVector	getDataSets_ (StringVector existing) const
	Generate data set expressions.
Protected Member Functions inherited from GroupOutputModule
virtual	~GroupOutputModule ()
	Protected destructor.

Protected Attributes
Child modules
Ref< SampleModule >	child_
	Child sampling module for data output.
Protected Attributes inherited from GroupOutputModule
StringVector	nodeGroups_
	Node groups for singular element force/displacement calculations.
StringVector	elemGroups_
	Element groups for extent/strain/stress value calculations.
StringVector	nodeDofNames_
	DOF names for node group calculations.
IdxVector	nodeDofs_
	DOF indices for node group calculations.
StringVector	elemDofNames_
	DOF names for element group calculations.
IdxVector	elemDofs_
	DOF indices for element group calculations.

Detailed Description

Extends GroupOutputModule with automatic configuration for PBC simulations. Provides strain and stress extraction from boundary node groups and calculates displacement gradients and stress tensors for homogenization.

Member Typedef Documentation

Self

typedef PBCGroupOutputModule PBCGroupOutputModule::Self

Super

typedef GroupOutputModule PBCGroupOutputModule::Super

Constructor & Destructor Documentation

PBCGroupOutputModule()

PBCGroupOutputModule::PBCGroupOutputModule ( const String &  name = "pbcGroupOutput" )

explicit

Parameters

name	Module name (default: "pbcGroupOutput")

Member Function Documentation

declare()

void PBCGroupOutputModule::declare ( )

static

getDataSets()

StringVector PBCGroupOutputModule::getDataSets ( const idx_t  dim, const bool  strains = false, const bool  stresses = false, const StringVector &  dofNames = { "dx", "dy", "dz"}  )

static

Parameters

dim	Spatial dimension
strains	Include strain measures
stresses	Include stress measures
dofNames	DOF names for coordinate directions

Returns

Vector of data set expressions

getDataSets_()

StringVector PBCGroupOutputModule::getDataSets_ ( StringVector  existing ) const

protected

Parameters

existing

Existing data sets

Returns

Complete data sets with PBC-specific expressions

getHeader_()

String PBCGroupOutputModule::getHeader_ ( String  existing ) const

protected

Parameters

existing

Existing header content

Returns

Complete header with PBC-specific columns

init()

Module::Status PBCGroupOutputModule::init ( const Properties &  conf, const Properties &  props, const Properties &  globdat  )

overridevirtual

Parameters

conf	Configuration properties (output)
props	User properties
globdat	Global data container

Returns

Module status

Reimplemented from GroupOutputModule.

makeNew()

Ref< Module > PBCGroupOutputModule::makeNew ( const String &  name, const Properties &  conf, const Properties &  props, const Properties &  globdat  )

static

Parameters

name	Module name
conf	Configuration properties (output)
props	User properties
globdat	Global data container

Returns

New module instance

run()

Module::Status PBCGroupOutputModule::run ( const Properties &  globdat )

overridevirtual

Parameters

globdat

Global data container

Returns

Module status

Reimplemented from GroupOutputModule.

shutdown()

void PBCGroupOutputModule::shutdown ( const Properties &  globdat )

overridevirtual

Parameters

globdat

Global data container

Member Data Documentation

child_

Ref<SampleModule> PBCGroupOutputModule::child_

protected

CHILD_NAME

const char * PBCGroupOutputModule::CHILD_NAME = "sampling"

static

TYPE_NAME

const char * PBCGroupOutputModule::TYPE_NAME = "PBCGroupOutput"

static
