GroupOutputModule Class Reference

Module for extracting and storing group-based output data. More...

#include "GroupOutputModule.h"

Inheritance diagram for GroupOutputModule:

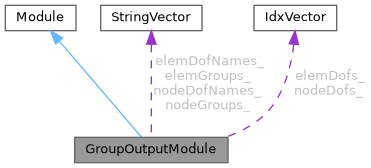

Collaboration diagram for GroupOutputModule:

Public Member Functions
	GroupOutputModule (const String &name="groupOutput")
	Constructor.
virtual Status	init (const Properties &conf, const Properties &props, const Properties &globdat) override
	Initialize the module.
virtual Status	run (const Properties &globdat) override
	Extract and store group-based output data.

Static Public Member Functions
static Ref< Module >	makeNew (const String &name, const Properties &conf, const Properties &props, const Properties &globdat)
	Factory method for creating new GroupOutputModule instances.
static void	declare ()
	Register GroupOutputModule type with ModuleFactory.

Static Public Attributes
Property identifiers
static const char *	TYPE_NAME = "GroupOutput"
	Module type name.

Protected Member Functions
virtual	~GroupOutputModule ()
	Protected destructor.

Protected Attributes
Group configuration
StringVector	nodeGroups_
	Node groups for singular element force/displacement calculations.
StringVector	elemGroups_
	Element groups for extent/strain/stress value calculations.
DOF configuration
StringVector	nodeDofNames_
	DOF names for node group calculations.
IdxVector	nodeDofs_
	DOF indices for node group calculations.
StringVector	elemDofNames_
	DOF names for element group calculations.
IdxVector	elemDofs_
	DOF indices for element group calculations.

Detailed Description

This module extracts various state variables (displacement, velocity, acceleration, load, and response forces) from specified node and element groups and stores them in the global database. For node groups, it computes:

• Sum of loads and response forces across all DOFs in the group
• Average displacement, velocity, and acceleration across all nodes in the group

For element groups, it extracts data from all nodes associated with the elements in the group. The module supports flexible DOF specification and automatically handles state vector retrieval and group-based aggregation.

The extracted data is stored in the global variables database under group names and can be accessed by other modules or for post-processing.

Constructor & Destructor Documentation

GroupOutputModule()

GroupOutputModule::GroupOutputModule ( const String &  name = "groupOutput" )

explicit

Parameters

name	Module name (default: "groupOutput")

~GroupOutputModule()

GroupOutputModule::~GroupOutputModule ( )

protectedvirtual

Member Function Documentation

declare()

void GroupOutputModule::declare ( )

static

init()

Module::Status GroupOutputModule::init ( const Properties &  conf, const Properties &  props, const Properties &  globdat  )

overridevirtual

Parameters

conf	Actually used configuration properties (output)
props	User-specified module properties
globdat	Global data container

Returns

Module status

Configures node and element groups, DOF specifications, and translates DOF names to indices. Performs initial data extraction.

Reimplemented in PBCGroupOutputModule.

makeNew()

Ref< Module > GroupOutputModule::makeNew ( const String &  name, const Properties &  conf, const Properties &  props, const Properties &  globdat  )

static

Parameters

name	Module name
conf	Actually used configuration properties (output)
props	User-specified module properties
globdat	Global data container

Returns

Reference to new GroupOutputModule instance

run()

Module::Status GroupOutputModule::run ( const Properties &  globdat )

overridevirtual

Parameters

globdat

Global data container

Returns

Module status

Extracts state variables from all configured node and element groups and stores aggregated results in the global variables database

Reimplemented in PBCGroupOutputModule.

Member Data Documentation

elemDofNames_

StringVector GroupOutputModule::elemDofNames_

protected

elemDofs_

IdxVector GroupOutputModule::elemDofs_

protected

elemGroups_

StringVector GroupOutputModule::elemGroups_

protected

nodeDofNames_

StringVector GroupOutputModule::nodeDofNames_

protected

nodeDofs_

IdxVector GroupOutputModule::nodeDofs_

protected

nodeGroups_

StringVector GroupOutputModule::nodeGroups_

protected

TYPE_NAME

const char * GroupOutputModule::TYPE_NAME = "GroupOutput"

static
