PBCGroupInputModule Class Reference

Module for automatic periodic boundary condition node group generation. More...

#include "PBCGroupInputModule.h"

Inheritance diagram for PBCGroupInputModule:

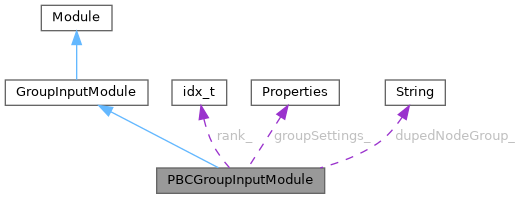

Collaboration diagram for PBCGroupInputModule:

Public Types
Type definitions
typedef PBCGroupInputModule	Self
	Self type alias.
typedef GroupInputModule	Super
	Base class type alias.

Public Member Functions
	PBCGroupInputModule (const String &name="pbcGroupInput")
	Constructor.
virtual Status	init (const Properties &conf, const Properties &props, const Properties &globdat) override
	Initialize PBC node group generation.
Public Member Functions inherited from GroupInputModule
	GroupInputModule (const String &name="groupInput")
	Constructor.

Static Public Member Functions
static Ref< Module >	makeNew (const String &name, const Properties &conf, const Properties &props, const Properties &globdat)
	Factory method for creating new instances.
static void	declare ()
	Register module type with factory.
Static Public Member Functions inherited from GroupInputModule
static Ref< Module >	makeNew (const String &name, const Properties &conf, const Properties &props, const Properties &globdat)
	Factory method for creating new GroupInputModule instances.
static void	declare ()
	Register GroupInputModule type with ModuleFactory.

Static Public Attributes
Property identifiers
static const char *	TYPE_NAME = "PBCGroupInput"
	Module type name.
static const char *	EDGES [6]
	Edge group names (xmin, xmax, etc.)
static const char *	CORNERS [4]
	Corner group names.
static const char *	DUPEDNODES_PROP = "duplicatedNodes"
	Duplicated nodes property name.
static const char *	NGROUPS_PROP = "groupSettings"
	Node groups property name.
Static Public Attributes inherited from GroupInputModule
static const char *	TYPE_NAME = "GroupInput"
	Module type name.
static const char *	NODE_GROUPS = "nodeGroups"
	Node groups property.
static const char *	ELEM_GROUPS = "elemGroups"
	Element groups property.

Protected Member Functions
virtual	~PBCGroupInputModule ()
	Protected destructor.
void	prepareProps_ (const Properties &myProps) const
	Prepare properties for PBC group generation.
void	sortBoundaryNodes_ (const IdxVector &islaves, const IdxVector &imasters, const NodeSet &nodes, const Properties &globdat, const idx_t ix) const
	Sort boundary nodes into master/slave pairs.
Protected Member Functions inherited from GroupInputModule
virtual	~GroupInputModule ()

Protected Attributes
Configuration parameters
idx_t	rank_
	Spatial dimension of the domain.
double	small_
	Tolerance for coordinate comparison.
bool	edges_
	Generate edge node groups.
bool	corners_
	Generate corner node groups.
Properties	groupSettings_
	Group configuration settings.
String	dupedNodeGroup_
	Name of duplicated node group.

Detailed Description

Extends GroupInputModule to automatically create node groups for periodic boundary conditions. Identifies boundary nodes on domain faces, edges, and corners based on coordinate analysis and generates appropriate node groups for PBC implementation.

Member Typedef Documentation

Self

typedef PBCGroupInputModule PBCGroupInputModule::Self

Super

typedef GroupInputModule PBCGroupInputModule::Super

Constructor & Destructor Documentation

PBCGroupInputModule()

PBCGroupInputModule::PBCGroupInputModule ( const String &  name = "pbcGroupInput" )

explicit

Parameters

name	Module name (default: "pbcGroupInput")

~PBCGroupInputModule()

PBCGroupInputModule::~PBCGroupInputModule ( )

protectedvirtual

Member Function Documentation

declare()

void PBCGroupInputModule::declare ( )

static

init()

Module::Status PBCGroupInputModule::init ( const Properties &  conf, const Properties &  props, const Properties &  globdat  )

overridevirtual

Parameters

conf	Actually used configuration properties (output)
props	User-specified module properties
globdat	Global data container

Returns

Module status

Reimplemented from GroupInputModule.

makeNew()

Ref< Module > PBCGroupInputModule::makeNew ( const String &  name, const Properties &  conf, const Properties &  props, const Properties &  globdat  )

static

Parameters

name	Module name
conf	Configuration properties (output)
props	User properties
globdat	Global data container

Returns

New module instance

prepareProps_()

void PBCGroupInputModule::prepareProps_ ( const Properties &  myProps ) const

protected

Parameters

myProps

Module properties to configure

sortBoundaryNodes_()

void PBCGroupInputModule::sortBoundaryNodes_ ( const IdxVector &  islaves, const IdxVector &  imasters, const NodeSet &  nodes, const Properties &  globdat, const idx_t  ix  ) const

protected

Parameters

islaves	Slave node indices
imasters	Master node indices
nodes	Node set
globdat	Global data container
ix	Coordinate direction index

Member Data Documentation

CORNERS

const char * PBCGroupInputModule::CORNERS

static

Initial value:

= {"corner0", "cornerx",
                                               "cornery", "cornerz"}

corners_

bool PBCGroupInputModule::corners_

protected

dupedNodeGroup_

String PBCGroupInputModule::dupedNodeGroup_

protected

DUPEDNODES_PROP

const char * PBCGroupInputModule::DUPEDNODES_PROP = "duplicatedNodes"

static

EDGES

const char * PBCGroupInputModule::EDGES

static

Initial value:

= {"xmin", "xmax", "ymin",
                                             "ymax", "zmin", "zmax"}

edges_

bool PBCGroupInputModule::edges_

protected

groupSettings_

Properties PBCGroupInputModule::groupSettings_

protected

NGROUPS_PROP

const char * PBCGroupInputModule::NGROUPS_PROP = "groupSettings"

static

rank_

idx_t PBCGroupInputModule::rank_

protected

small_

double PBCGroupInputModule::small_

protected

TYPE_NAME

const char * PBCGroupInputModule::TYPE_NAME = "PBCGroupInput"

static
