Base class for explicit time integration schemes. More...

#include "ExplicitModule.h"

Inheritance diagram for ExplicitModule:

[legend]

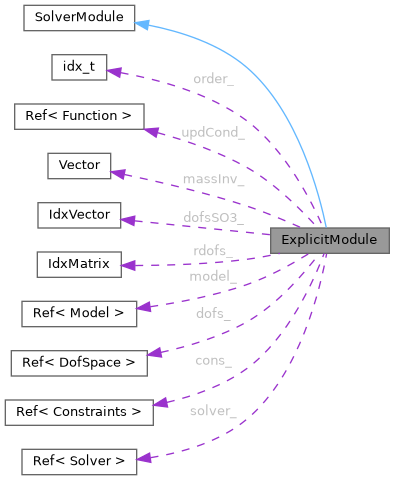

Collaboration diagram for ExplicitModule:

[legend]

Public Types
enum	MassMode { LUMPED , CONSISTENT }
	Mass matrix formulation modes. More...

Public Member Functions
virtual Status	init (const Properties &conf, const Properties &props, const Properties &globdat) override
	Initialize the module.

virtual void	shutdown (const Properties &globdat) override
	Shutdown the module.

virtual void	configure (const Properties &props, const Properties &globdat) override
	Configure the module from properties.

virtual void	getConfig (const Properties &props, const Properties &globdat) const override
	Get current module configuration.

virtual void	advance (const Properties &globdat) override
	Advance to next time step.

virtual void	solve (const Properties &info, const Properties &globdat) override=0
	Solve current time step (pure virtual)

virtual void	cancel (const Properties &globdat) override
	Cancel current solution attempt.

virtual bool	commit (const Properties &globdat) override
	Compute next step size and commit solution.

virtual void	setPrecision (double eps) override
	Set convergence precision.

virtual double	getPrecision () const override
	Get current convergence precision.

Static Public Attributes
Property identifiers
static const char *	TYPE_NAME = "Explicit"
	Module type name.

static const char *	STEP_COUNT = "stepCount"
	Step count property.

static const char *	SO3_DOFS = "dofs_SO3"
	SO(3) DOF types property.

static const char *	LEN_SCALE = "lengthScale"
	Length scale property.

Protected Member Functions
	ExplicitModule (const String &name="")
	Protected constructor.

virtual	~ExplicitModule ()
	Protected destructor.

void	updateMass_ (const Properties &globdat)
	Update mass matrix.

void	invalidate_ ()
	invalidate_ current state

void	ABupdate (const Vector &delta_y, const Vector &f_cur, const Vector &f_old) const
	Adams-Bashforth 2-step update.

void	ABupdate (const Vector &delta_y, const Vector &f_cur) const
	Adams-Bashforth 1-step update (explicit Euler)

void	updateVec (const Vector &y_new, const Vector &y_old, const Vector &delta_y, const bool rot=false)
	Update displacement vectors with optional SO(3) handling.

void	getAcce (const Vector &a, const Ref< Constraints > &cons, const Vector &fres, const Properties &globdat)
	Get acceleration and return resulting force vector.

Vector	getForce (const Vector &fint, const Vector &fext, const Properties &globdat)
	Get force vector.

double	getQuality (const Vector &y_pre, const Vector &y_cor)
	Get solution quality measure.

Protected Attributes
Module state
bool	valid_
	State validity flag.

Time stepping parameters
double	dtime_
	Current time step size.

double	prec_
	Precision tolerance.

double	minDtime_
	Minimum time step size.

double	maxDtime_
	Maximum time step size.

double	saftey_
	Safety factor for step size control.

double	incrFact_
	Step size increase factor.

double	decrFact_
	Step size decrease factor.

Integration parameters
MassMode	mode_
	Mass matrix mode.

idx_t	order_
	Integration order.

double	lenScale_
	Characteristic length scale.

DOF management
Ref< Function >	updCond_
	Update condition function.

Vector	massInv_
	Inverse mass matrix.

IdxVector	dofsSO3_
	SO(3) DOF type indices.

IdxMatrix	rdofs_
	Rotational DOF mapping.

System components
Ref< Model >	model_
	Root of the model tree.

Ref< DofSpace >	dofs_
	Degree of freedom space.

Ref< Constraints >	cons_
	Constraint manager.

Ref< Solver >	solver_
	Linear solver.

Detailed Description

Provides foundation for explicit solvers with support for rotational DOFs, adaptive time stepping, and both lumped and consistent mass matrices. Handles special integration of SO(3) rotational degrees of freedom using exponential maps.

Member Enumeration Documentation

◆ MassMode

enum ExplicitModule::MassMode

Enumerator
LUMPED	Lumped mass matrix.
CONSISTENT	Consistent mass matrix.

Constructor & Destructor Documentation

◆ ExplicitModule()

ExplicitModule::ExplicitModule ( const String & name = "" )

explicitprotected

Parameters

name	Module name

◆ ~ExplicitModule()

ExplicitModule::~ExplicitModule ( )

protectedvirtual

Member Function Documentation

◆ ABupdate() [1/2]

void ExplicitModule::ABupdate	(	const Vector &	delta_y,
		const Vector &	f_cur
	)		const

inlineprotected

Parameters

delta_y	Displacement increment
f_cur	Current force vector

◆ ABupdate() [2/2]

void ExplicitModule::ABupdate	(	const Vector &	delta_y,
		const Vector &	f_cur,
		const Vector &	f_old
	)		const

inlineprotected

Parameters

delta_y	Displacement increment
f_cur	Current force vector
f_old	Previous force vector

◆ advance()

void ExplicitModule::advance ( const Properties & globdat )

overridevirtual

Parameters

globdat Global data container

◆ cancel()

void ExplicitModule::cancel ( const Properties & globdat )

overridevirtual

Parameters

globdat Global data container

◆ commit()

bool ExplicitModule::commit ( const Properties & globdat )

overridevirtual

Parameters

globdat Global data container

Returns: true if step can be accepted

◆ configure()

void ExplicitModule::configure	(	const Properties &	props,
		const Properties &	globdat
	)

overridevirtual

Parameters

props	User-specified module properties
globdat	Global data container

◆ getAcce()

void ExplicitModule::getAcce	(	const Vector &	a,
		const Ref< Constraints > &	cons,
		const Vector &	fres,
		const Properties &	globdat
	)

protected

Parameters

a	Acceleration vector (output)
cons	Constraint manager
fres	Resulting force vector
globdat	Global data container

◆ getConfig()

void ExplicitModule::getConfig	(	const Properties &	props,
		const Properties &	globdat
	)		const

overridevirtual

Parameters

props	Actually used configuration properties (output)
globdat	Global data container

◆ getForce()

Vector ExplicitModule::getForce	(	const Vector &	fint,
		const Vector &	fext,
		const Properties &	globdat
	)

protected

Parameters

fint	Internal force vector
fext	External force vector
globdat	Global data container

Returns: Resulting force vector (external - internal)

◆ getPrecision()

double ExplicitModule::getPrecision ( ) const

overridevirtual

Returns: Current convergence tolerance

◆ getQuality()

double ExplicitModule::getQuality	(	const Vector &	y_pre,
		const Vector &	y_cor
	)

protected

Parameters

y_pre	Predicted solution
y_cor	Corrected solution

Returns: Quality measure

◆ init()

Module::Status ExplicitModule::init	(	const Properties &	conf,
		const Properties &	props,
		const Properties &	globdat
	)

overridevirtual

Parameters

conf	Actually used configuration properties (output)
props	User-specified module properties
globdat	Global data container

Returns: Module status

Reimplemented in EmbeddedRKModule.

◆ invalidate_()

void ExplicitModule::invalidate_ ( )

protected

◆ setPrecision()

void ExplicitModule::setPrecision ( double eps )

overridevirtual

Parameters

eps	Convergence tolerance

◆ shutdown()

void ExplicitModule::shutdown ( const Properties & globdat )

overridevirtual

Parameters

globdat Global data container

◆ solve()

virtual void ExplicitModule::solve	(	const Properties &	info,
		const Properties &	globdat
	)

overridepure virtual

Parameters

info	Solver information
globdat	Global data container

Implemented in EmbeddedRKModule, LeapFrogModule, and MilneDeviceModule.

◆ updateMass_()

void ExplicitModule::updateMass_ ( const Properties & globdat )

protected

Parameters

globdat Global data container

◆ updateVec()

void ExplicitModule::updateVec	(	const Vector &	y_new,
		const Vector &	y_old,
		const Vector &	delta_y,
		const bool	rot = `false`
	)

protected

Parameters

y_new	New displacement vector
y_old	Old displacement vector
delta_y	Displacement increment
rot	Flag for rotational DOFs

Member Data Documentation

◆ cons_

Ref<Constraints> ExplicitModule::cons_

protected

◆ decrFact_

double ExplicitModule::decrFact_

protected

◆ dofs_

Ref<DofSpace> ExplicitModule::dofs_

protected

◆ dofsSO3_

IdxVector ExplicitModule::dofsSO3_

protected

◆ dtime_

double ExplicitModule::dtime_

protected

◆ incrFact_

double ExplicitModule::incrFact_

protected

◆ LEN_SCALE

const char * ExplicitModule::LEN_SCALE = "lengthScale"

static

◆ lenScale_

double ExplicitModule::lenScale_

protected

◆ massInv_

Vector ExplicitModule::massInv_

protected

◆ maxDtime_

double ExplicitModule::maxDtime_

protected

◆ minDtime_

double ExplicitModule::minDtime_

protected

◆ mode_

MassMode ExplicitModule::mode_

protected

◆ model_

Ref<Model> ExplicitModule::model_

protected

◆ order_

idx_t ExplicitModule::order_

protected

◆ prec_

double ExplicitModule::prec_

protected

◆ rdofs_

IdxMatrix ExplicitModule::rdofs_

protected

◆ saftey_

double ExplicitModule::saftey_

protected

◆ SO3_DOFS

const char * ExplicitModule::SO3_DOFS = "dofs_SO3"

static

◆ solver_

Ref<Solver> ExplicitModule::solver_

protected

◆ STEP_COUNT

const char * ExplicitModule::STEP_COUNT = "stepCount"

static

◆ TYPE_NAME

const char * ExplicitModule::TYPE_NAME = "Explicit"

static

◆ updCond_

Ref<Function> ExplicitModule::updCond_

protected

◆ valid_

bool ExplicitModule::valid_

protected
